Additional Photos

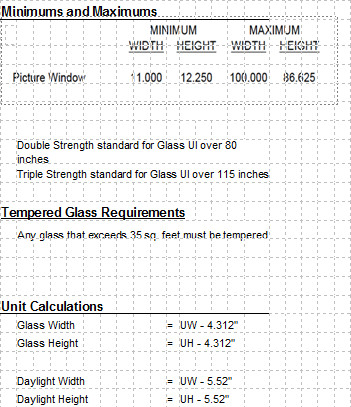

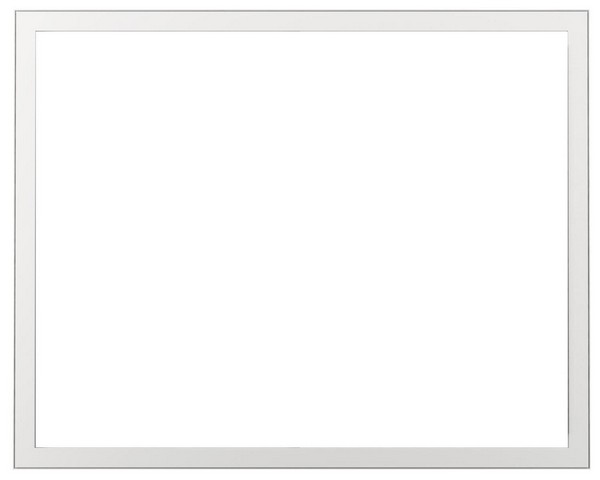

Picture Window (with Crank-Out Frame) Specifications



Picture Windows (with Up & Down Frame) Specifications

Contractor:     Product:

        I'm just very pleased about the entire process (keep your price point affordable). Remember this was second building. 60 to 70 windows done timely with no complaints. I would refer you guys to anyone.

                      M. Williams
                      (This customer also purchased Up & Down Windows)



Contractor:     Product:

        We were told that the work would be done from outside. When they arrive we were not prepared and didn't have time to get things ready properly.

                      A. Wright
                      (This customer also purchased Up & Down Windows)

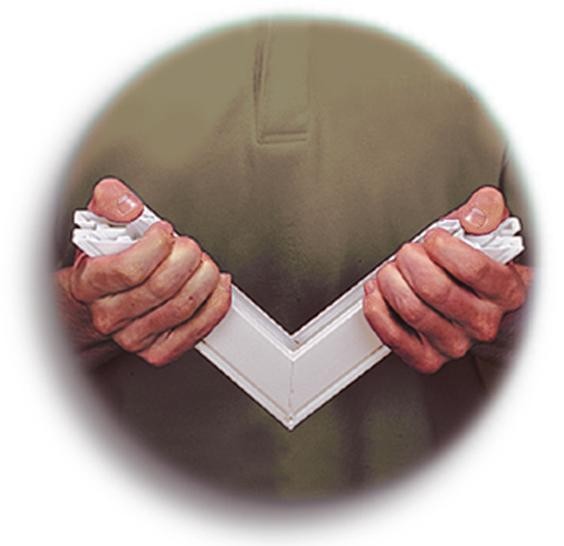

Your windows will be entirely fusion welded – sashes and mainframes – to create a solid, one-piece unit that maintains its strength over the years. We offer a state-of-the-art fusion process that ensures frame and sash corners won't have the excess variance found with other welding techniques. (Pictured is a Crank-Out window style.)











Your windows and patio doors can be ordered in 1/8” increments to accommodate any replacement application, providing a perfect fit and minimizing installation time and special trimming requirements.

New Generation Vinyl withstands harsh weather and wear-and-tear better. This rugged, maintenance-free, New Generation uiPV offers low conductivity and high energy-efficiency properties for your home and you'll never need to paint or stain your windows.






  • Up to a 15% Reduction in your Energy Bills: ReplaceSmart ENERGY STAR qualified windows and doors can reduce your energy bills up to 15% while helping protect the environment.  And ReplaceSmart windows can exceed ENERGY STAR Qualifications by more than 25% leading to even greater energy savings.
  • Warmer in the Winter and Cooler in the Summer:
    • More of the sun’s heat is blocked in the summer.
    • More of your furnace’s heat stays in your home in the winter.
    • Less drafts from air infiltration.
  • Strength: ReplaceSmart’s windows can withstand wind speeds of over 100 miles per hour.
  • Ease of Cleaning: Optional Advanced Easy Clean Glass is a remarkable advancement in glass design that eliminates frequent exterior window cleaning. Windows and doors with special Easy Clean Glass require less effort than windows with ordinary glass.
  • Increased Home Value: Based on Remodeling Magazines 2011-2012 National Cost vs Value Report after installing vinyl windows your home’s value should increase so much as to recoup 68% of the cost of your new windows and installation.
  • You’ll Love the Way they Look: Stand out with a stylish new look or recreate the authentic look on an old window.  Whatever your reason, ReplaceSmart customers love the way their new windows look.
  • A Lifetime of Windows that Work: Life comes with few guarantees. Fortunately, ReplaceSmart Windows offer you a permanent solution. Our custom vinyl windows offer more than construction quality, unmatched energy-efficiency and low maintenance.  They also offer a Limited Lifetime Warranty. We believe so strongly in the durability of our windows that we back each window and door with our hassle-free Limited Lifetime Warranty. Lifetime means your windows and doors are protected under the warranty for as long  as you live in your home. And your warranty is transferable to the next homeowner, helping you protect your investment by increasing your home’s resale value.

Contractor Series windows are available in two colors:

White Interior with a White Exterior
or
Beige Interior with a Beige Exterior

The number of horizontal and vertical dividers will vary on all window styles with colonial dividers. The number of dividers is based the size of your window. Diamond pattern available upon request.



  • Standard glass divider in ReplaceSmart’s Contractor Windows is pictured to the right.
  • In between the glass for easy glass cleaning.
  • 5/8 inch wide


Dual Pane Insulated Glass:
Dual pane insulated glass consists of two panes of glass that are sealed together resulting in one dead air space in between the glass – the dead air space is an insulator. Our overall insulated glass measures 7/8” thick. A dead air space between the glass of at least 3/4” is optimal for allowing air to act as an insulator. Any dead air space over 3/4” does not provide more insulation. Having dual pane glass greatly reduces heat and sound transfer.

Triple Pane Insulated Glass:
Triple pane insulated glass consists of three panes of glass that are sealed together resulting in two dead air spaces in between the glass. Triple pane glass reduces the heat and sound transfer more than dual pane insulated glass.

Low-E:
Low-E stands for low emissivity. It is a very thin metallic coating that allows the sun’s light to pass through the insulating glass, but, at the same time reflects radiant heat back toward its source. It helps keep your home warmer in the winter by trapping radiant heat in your home. And it helps keep your home cooler in the summer by blocking radiant heat from entering your home. The low-e glass provided in your windows results in minimal visible darkening which has been a common problem with some low-e glass. Also it minimizes interior glare, reducing eyestrain and making it easier to watch television or look at a computer screen when bright sunlight fills a room.

Argon Gas:
Argon is a nontoxic, nonreactive, clear, and odorless gas . It is put in the air space(s) of your dual and triple pane insulated glass. Argon gas is less heavy and slower-moving than air and thus minimizes convection currents within the dead air space. Conduction through the gas is reduced, and the overall transfer of heat is reduced.

Warm Edge Plus Spacer:
The panes of glass in dual or triple pane insulating glass are held together by a spacer. The spacer runs along the entire perimeter of your insulating glass. The edge of the glass is the coldest part of any window. So the spacer is very important. The Warm Edge Plus Spacer System reduces thermal transfer at the edge of the glass by utilizing a unique U-shaped channel to separate the glass panes and interrupt the natural flow of heat to cold. It flexes with glass expansion and contraction to ensure a strong seal for the life of the window.

Optional Advanced Easy Clean® Glass is a remarkable advancement in glass design that eliminates frequent exterior window cleaning. Windows and doors with special Easy Clean Glass require less effort to clean than windows with ordinary glass.
